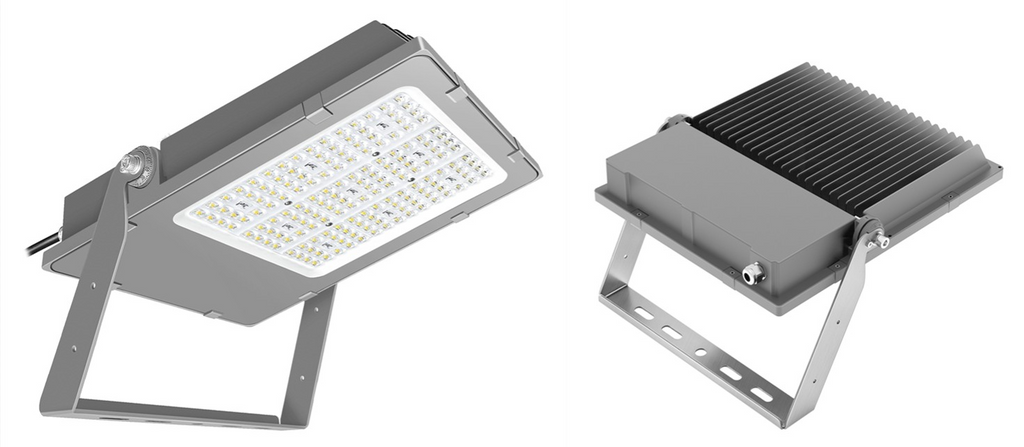

TNS 200 – Outdoor Tennis LED Light, 200 W
TNS 200 – Outdoor Tennis LED Light, 200 W
Outdoor lighting for your tennis courts. TNS 200 is a 200 W LED floodlight with 4000 K light and a 130° × 50° distribution. Explore the supplied single- and double-court designs to plan your upgrade.
200 W / 4000 K / 130° × 50°
€392 per fixture, excluding VAT and transport. For business customers.
Shipping and dispatch timing are confirmed per project. Request a quote before ordering; online checkout is not available for this fixture yet.
Discuss your outdoor tennis project →
Technical specifications
| Model | TNS 200 |
|---|---|
| Power | 200 W |
| Colour temperature | 4000 K |
| Luminous flux stated in the design | 31,892 lm |
| Light distribution | 130° × 50° |

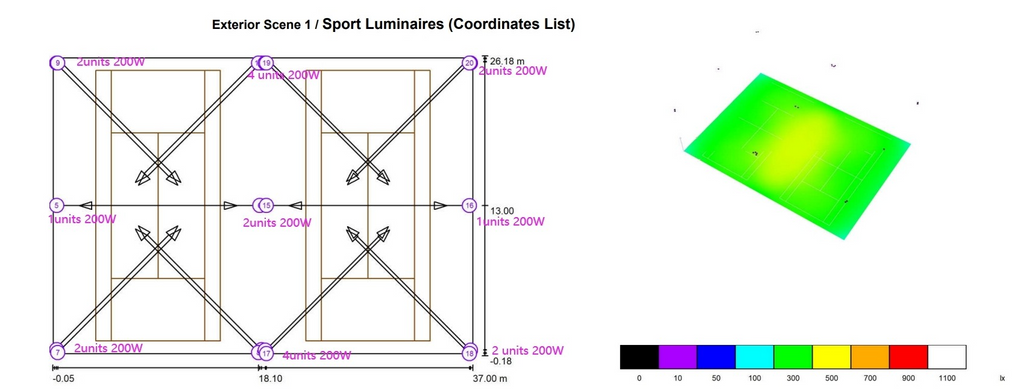

Single and double court examples
Single court: 8 fixtures · €3,136
Double court: 20 fixtures · €7,840

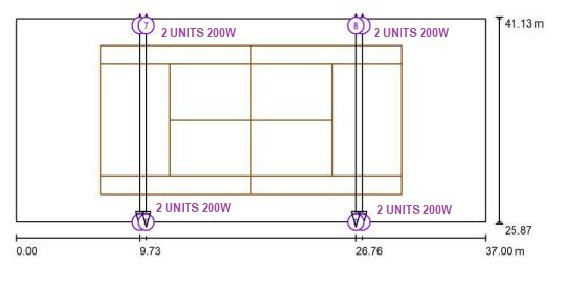

The supplied single-court example covers 37 × 15 m; the double-court example covers 37 × 26 m. Both specify a 12 m mounting height. Connected fixture power is 1.6 kW and 4 kW respectively.
Fixture budgets exclude VAT, transport, poles, lighting plans and installation.
The datasheet reports 355 lx average illuminance, 303 lx minimum, 431 lx maximum, uniformity U₀ 0.85, maximum glare rating 24 and ULR 0% for the examples. These are design-specific figures, not guaranteed results for every venue.
Planning, mounting and delivery
Send your court dimensions, existing pole positions and heights, photos and lighting requirements. Pole suitability, aiming, electrical work, final quantities, lead time and transport should be confirmed for your site. Lighting plans and installation can be quoted separately through Global Squash.
Download the lighting design
TNS 200 outdoor tennis lighting: datasheet and example designs (PDF)
